inBio 160

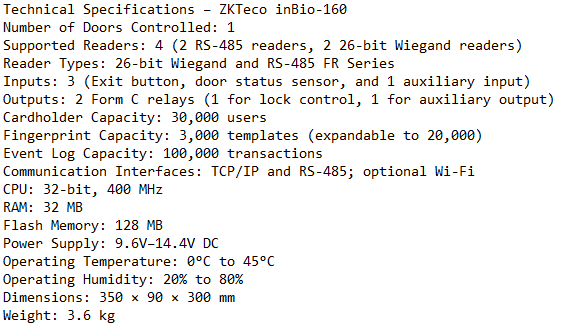

Features:-

• Number of Doors Controlled=1 Door
• Number of Readers Supported=4 (2 RS485 reader, 2 26-bit Wiegand Reader)
• Types of Readers Supported=26-bit Wiegand and RS485 FR Series Reader
• Number of Inputs=3 (Exit Button, Door Status, Aux)
• Number of Outputs=2 (1 Form C relay for lock and 1 Form C relay for Aux output)
• Card holders Capacity=30000
• Fingerprint Capacity=3000 (Optional 20000)
• Log Events Capacity=100000
• Communication=TCP/IP
• Package Dimension=350(L)×90(H)×300(W)mm
• Package Weight=3.6kg
• CPU=32 bit 400MHz CPU
• RAM=32M
• Flash memory=128M
• Power=9.6V-14.4V DC
• Operating Temperature=0 °C- 45°C
• Operating Humidity=20% to 80%

Datasheet
